SUNTES ECE-1513 / ECE-1514 / ECE-1515 / ECE-2115 / ECE-2116 DC Electromagnetic Brakes
Customer: What is this product used for?
KAYO: This SUNTES range is designed for sluice-gate brake applications. Compare the exact brake, disc and shaft configuration in the table before selecting a unit.
Customer: Which specifications should I compare?

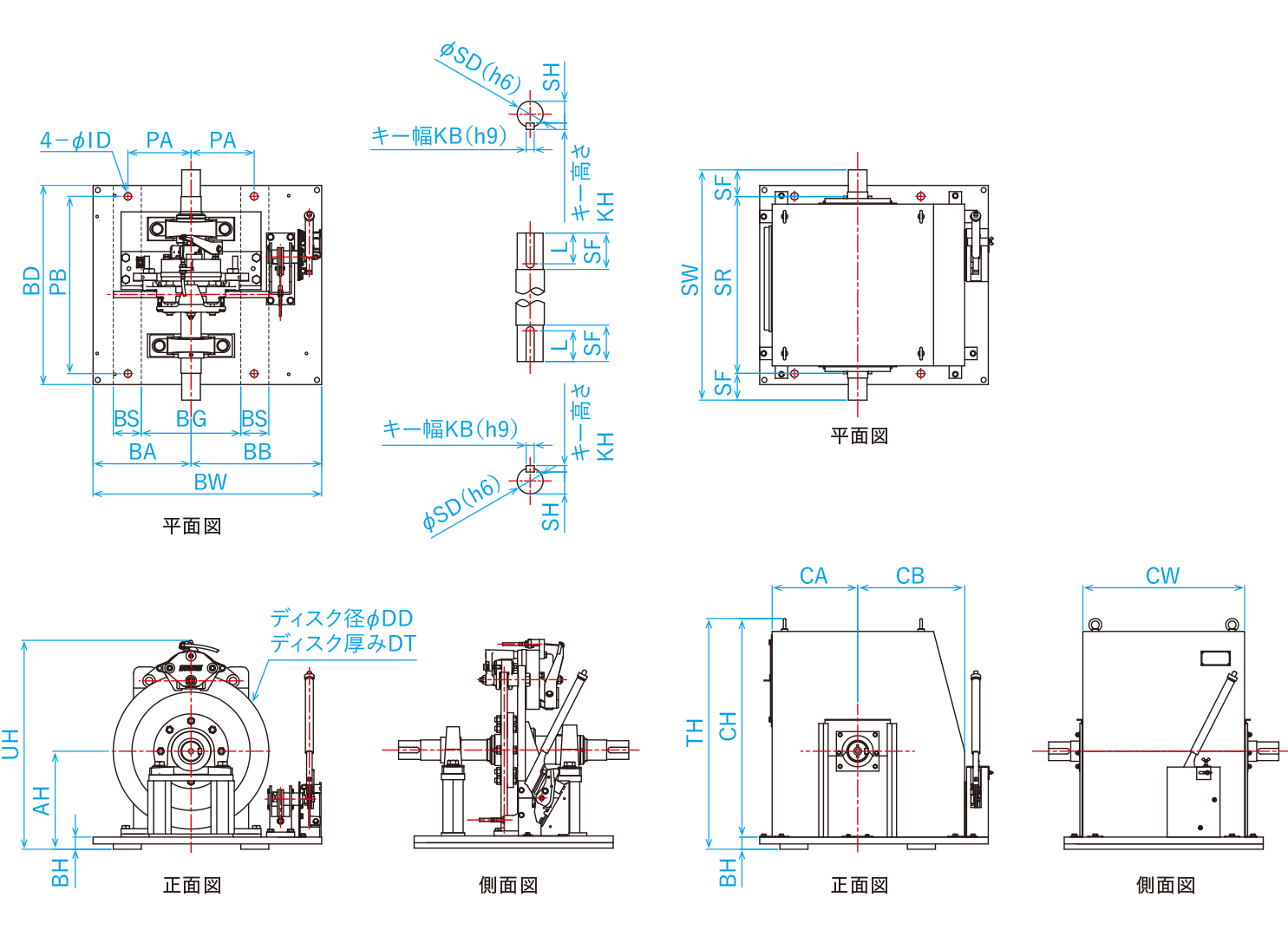

KAYO: Check the model-specific values below. Where a group has several variants, each column or row retains its own configuration. Lettered dimensions refer to the matching product drawing; a blank or dash does not state a value.
| Specification group 1 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Brake | |||||||||||||
| AH | DD | DT | PA | PB | ID | BH | BS | BG | BD | BA | BB | BW | ||
| ECE-1513-01 | 225 | 370 | 20 | 139.5 | 420 | 15 | 26 | 65 | 220 | 460 | 275 | 390 | 665 | |
| ECE-1514-01 | 250 | 400 | 20 | 159 | 420 | 19 | 31 | 75 | 250 | 460 | 275 | 390 | 665 | |
| ECE-1514-02 | 280 | 440 | 20 | 178 | 540 | 19 | 34 | 90 | 260 | 600 | 300 | 425 | 725 | |
| ECE-1515-01 | 315 | 500 | 20 | 203 | 570 | 24 | 39 | 90 | 320 | 640 | 315 | 420 | 735 | |
| ECE-2115-01 | 350 | 580 | 20 | 228.5 | 630 | 24 | 39.5 | 100 | 360 | 690 | 350 | 470 | 820 | |
| ECE-2116-01 | 385 | 680 | 20 | 254 | 730 | 28 | 39.5 | 125 | 380 | 790 | 405 | 475 | 880 | |
| Specification group 2 | ||||||||||||||
| Model | Brake | Cover | Shaft | |||||||||||
| UH | TH | CW | CA | CB | CH | SF | SR | SW | KB | SD | L | KH | SH | |
| ECE-1513-01 | 518 | 587 | 370 | 230 | 310 | 561 | 56 | 428 | 540 | 14 | 48 | 46 | 9 | 42.5 |
| ECE-1514-01 | 558 | 627 | 370 | 230 | 310 | 596 | 56 | 428 | 540 | 16 | 55 | 45 | 10 | 49 |
| ECE-1514-02 | 621 | 677 | 470 | 255 | 345 | 643 | 56 | 528 | 640 | 18 | 60 | 43 | 11 | 53 |
| ECE-1515-01 | 672 | 742 | 520 | 275 | 344 | 703 | 71 | 598 | 740 | 18 | 60 | 58 | 11 | 53 |
| ECE-2115-01 | 715 | 787 | 570 | 310 | 389 | 747 | 71 | 658 | 800 | 18 | 65 | 58 | 11 | 58 |
| ECE-2116-01 | 800 | 872 | 668 | 365 | 394 | 832 | 100 | 740 | 940 | 20 | 75 | 85 | 12 | 67.5 |
| Specification group 3 | ||||||||||||||
| Model | Rated braking torque (N·m) | Brake model | Mass (kg) | Disc moment of inertia (kg·m2) | Permissible braking power (kJ/min) | Permissible braking speed (min-1) | ||||||||
| Main unit | Cover | |||||||||||||
| ECE-1513-01 | 294 | 207 | EC-5415SR | 170 | 25 | 0.32 | 35 | 3000 | ||||||
| ECE-1514-01 | 393 | 297 | EC-5415SR | 190 | 25 | 0.45 | 38 | 2800 | ||||||
| ECE-1514-02 | 519 | 389 | EC-5415SR | 240 | 30 | 0.63 | 43 | 2600 | ||||||
| ECE-1515-01 | 791 | 523 | EC-5415SR | 290 | 35 | 1.02 | 49 | 2200 | ||||||
| ECE-2115-01 | 1292 | 980 | EC-5421SR | 365 | 45 | 1.83 | 71 | 1900 | ||||||
| ECE-2116-01 | 2102 | 1768 | 1285 | EC-5421SR | 475 | 55 | 3.53 | 85 | 1600 | |||||
Customer: Are there important operating notes?
KAYO: Double-brake versions may differ dimensionally from the standard product.
Customer: How do I choose the correct version?
KAYO: Match the complete model, disc dimensions, mounting arrangement and operating duty. Check the required torque, speed, control pressure or electrical supply against the actual application.
Customer: What should I send for an enquiry?
KAYO: Send the model or nameplate photo, quantity, existing drawing, installation dimensions and operating conditions. For a replacement part, include the full brake or clamper code and photos of the existing component so that fit and configuration can be checked.
